ROCKARMOR 12,000 POUND WINCH



Quick Features:

7.2HP Motor / 28m Synthetic Rope / IP67 Rated (2 Hours Fully Submersible)

Wireless Controller (inbuilt receiver) / Pro Link Included / Hawse Fairlead Included

Extended Control Box Leads /

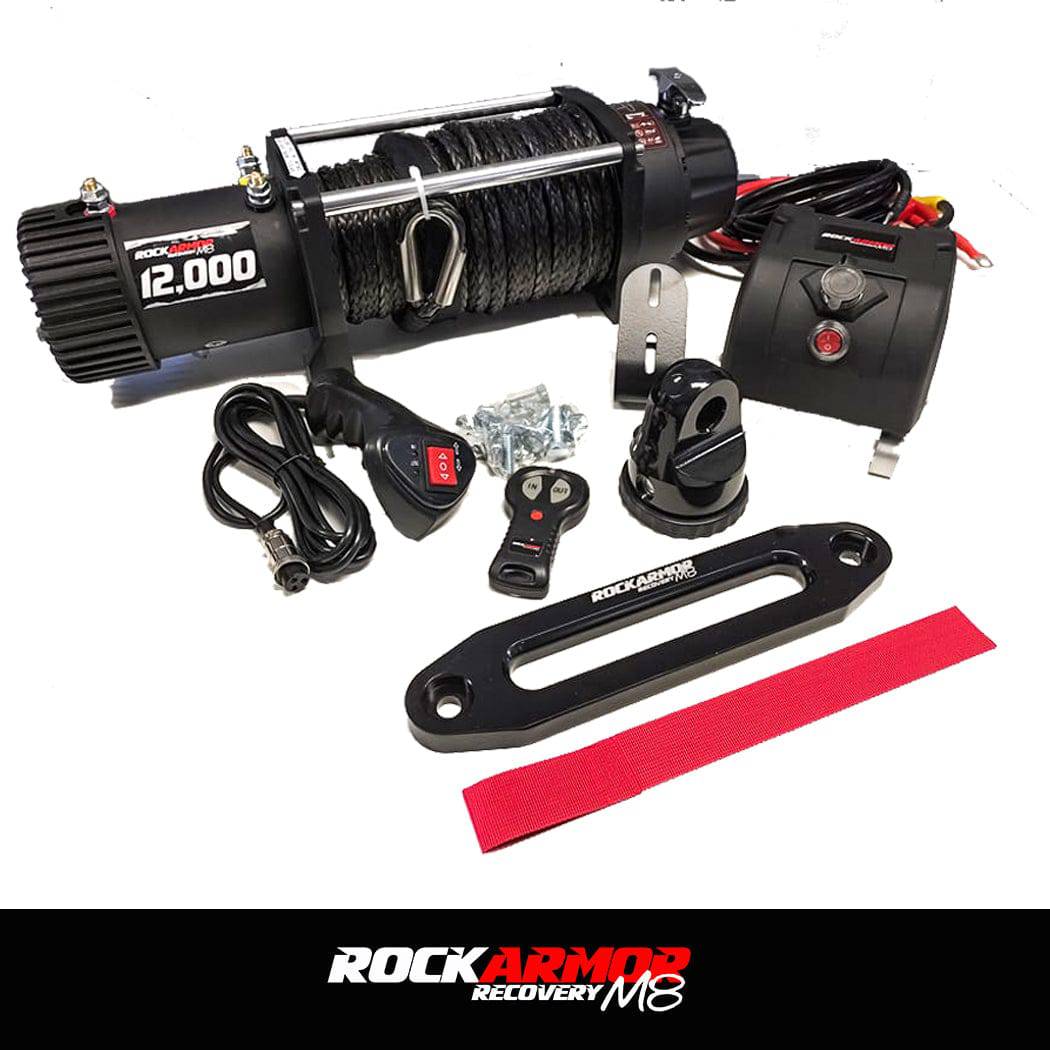

What's included in the box:

Rockamor Recovery M8 12,000 Pound Winch (with Synthetic Rope)

28 Metres of Synthetic Winch Rope

Wireless Controller

Controller with Extension Lead

Winch Control Unit

Rockarmor Alloy Hawse Fairlead

Synthetic Winch Rope Pro Link

Control Box Mounting Bracket

Hand Saver Strap

Installation Guide Book



Winch Specifications:

Manufacturer: Rockarmor 4x4

Line Pull:  5,443kgs / 12,000lbs

Motor: Series Wound DC12V / 7.2HP

Gear Train: 3 Stage Planetary

Gear Ratio: 216:1

Free Spooling Clutch with Rotating Gear Ring

IP67 Rated

Synthetic Winch Rope: 9.5mm x 28 metres

Wireless Receiver: Built into the Control Box

Isolator Switch: Built into the Control Box

Drum Size: 64mm x 224mm

Weight of Winch: 26kgs

Mounting Bolt Pattern: 254mm x 114.3mm

Dimensions: 535 X 162 X 170MM

Warranty: 2 Years Limited Electrical & Mechanical
