OFFROAD FRONTAL PACKAGE BY ROCKARMOR

Vehicle: Ford Ranger PX2 & PX3 Models

Also suits: Ford Everest UA & UB Models



Package includes:

Rockarmor GT Bull Bar

Rockarmor 12,000lbs Winch

Rockarmor R85 Spotties





Winch Specifications:

Manufacturer: Rockarmor 4x4

Line Pull:  5,443kgs / 12,000lbs

Motor: Series Wound DC12V / 7.2HP

Gear Train: 3 Stage Planetary

Gear Ratio: 216:1

Free Spooling Clutch with Rotating Gear Ring

IP67 Rated (2 Hours Fully Submersible)

Synthetic Winch Rope: 9.5mm x 28 metres

Wireless Receiver: Built into the Control Box

Isolator Switch: Built into the Control Box

Drum Size: 64mm x 224mm

Weight of Winch: 26kgs

Mounting Bolt Pattern: 254mm x 114.3mm

Dimensions: 535 X 162 X 170MM

Warranty: 5 Years Limited Electrical & Mechanical



ROCKARMOR R85 LED SPOTTIES

VOLTAGE: 9-32v

LED CHIPS: 15 x 10w High Intensity Osram Chips

Waterproof & Dustproof: IP68

LED POWER: 150w

LUMENS: 16600LM

COLOUR TEMP: 6500 (Kelvin)

BEAM: Driving Spot

LUMINATION DISTANCE: 1 LUX @800M

MATERIAL: Diecast  Aluminium Steel Bracket

LENS MATERIAL: Poly Carbonate Lens

LIFETIME: 80,000+ hours

Warranty: 1 year

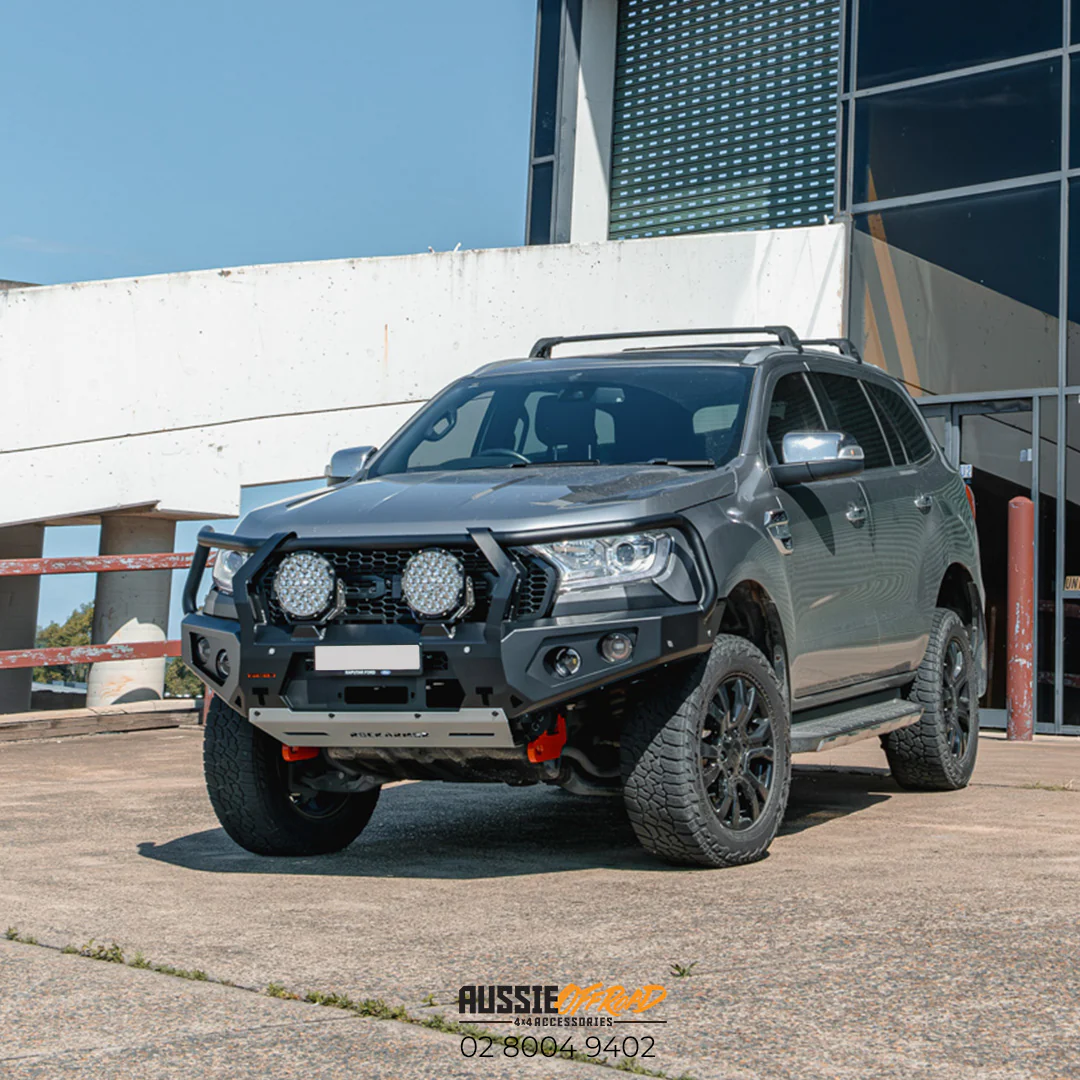

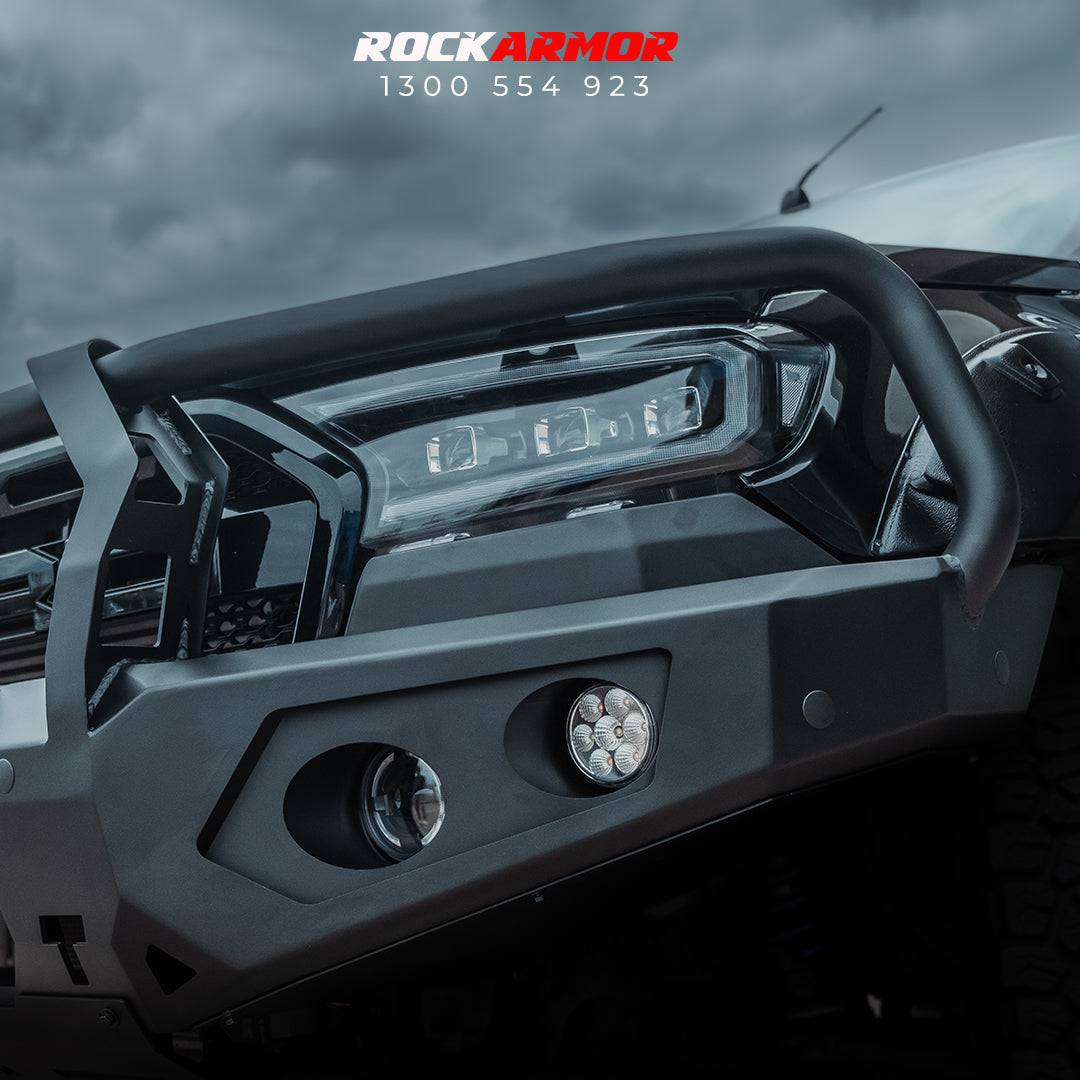

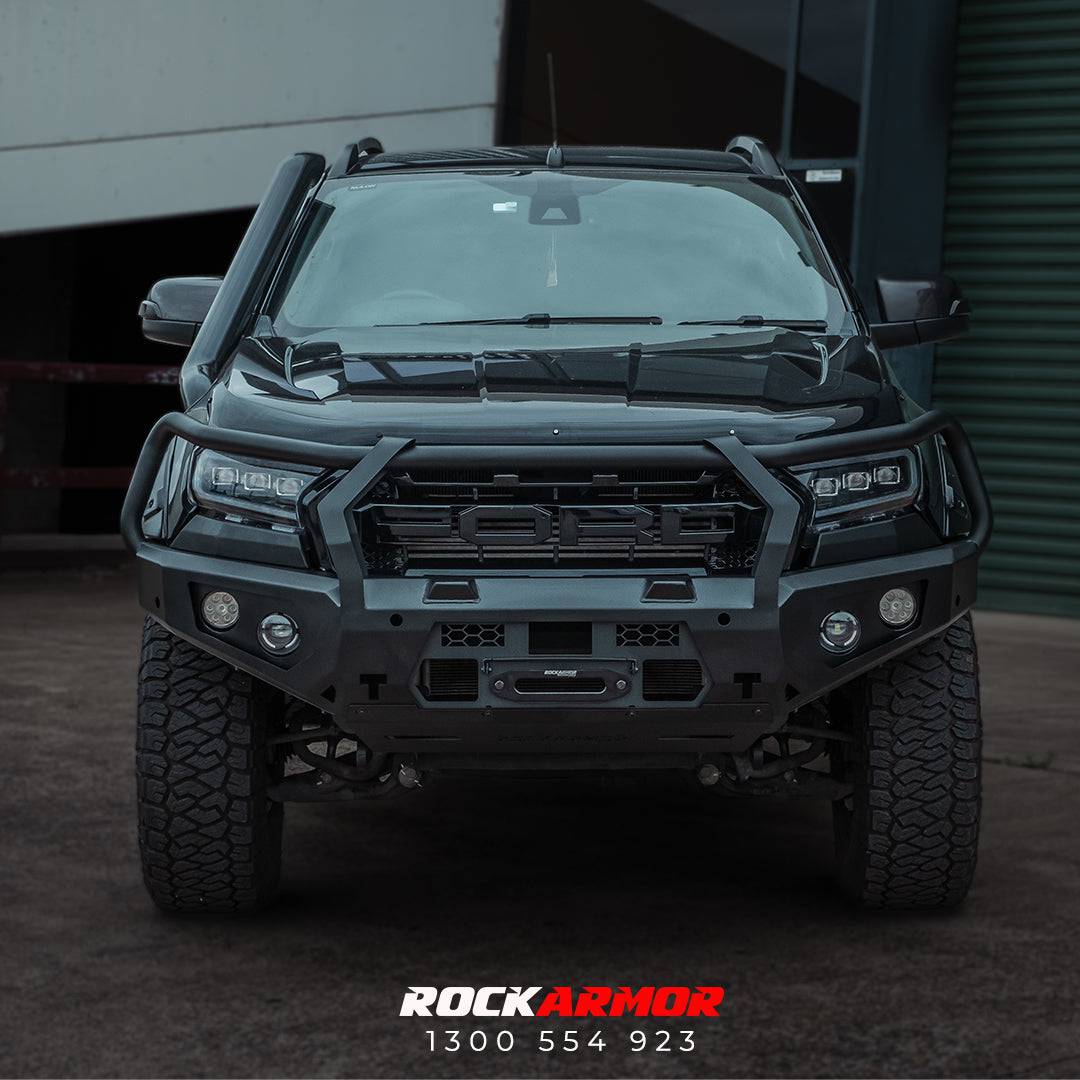

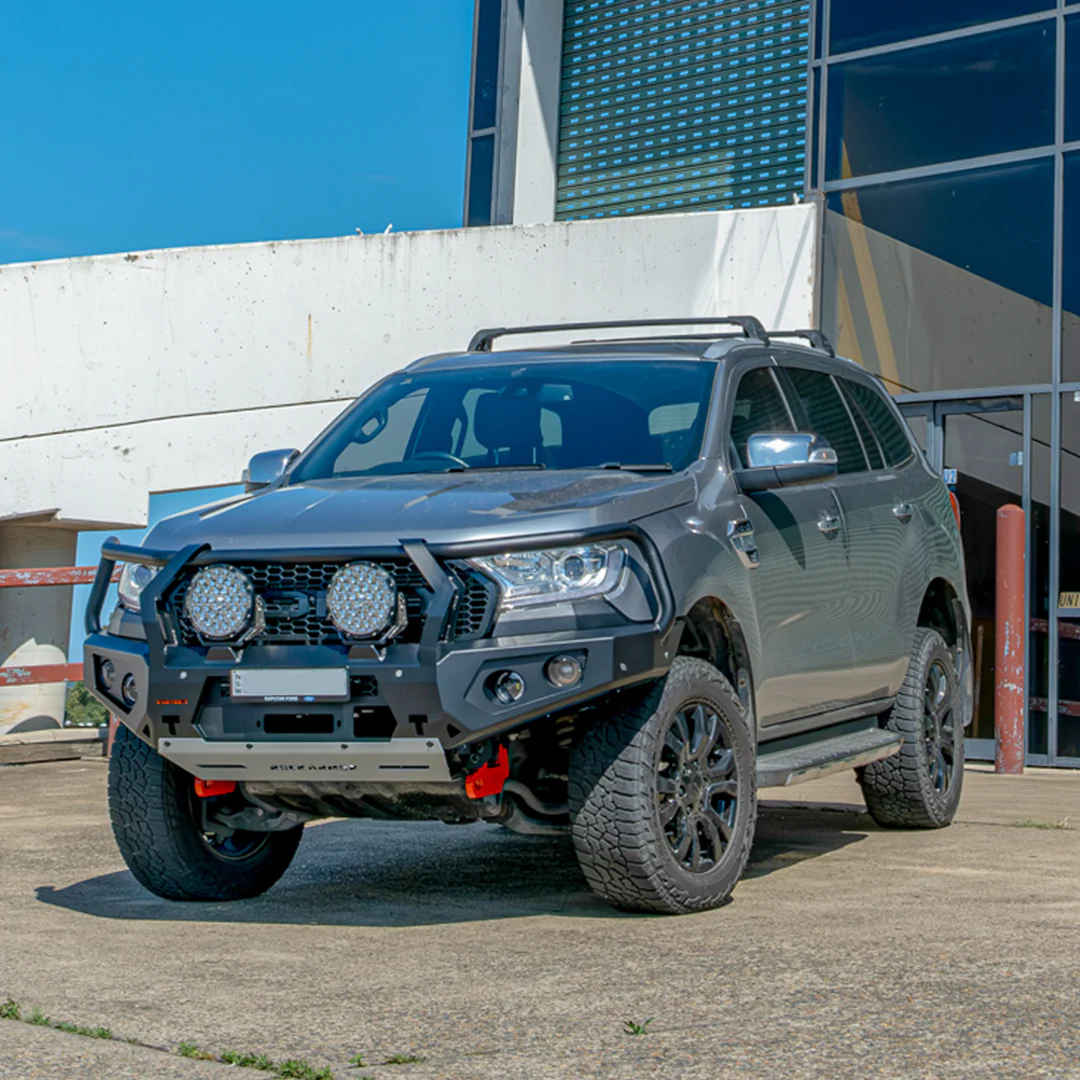

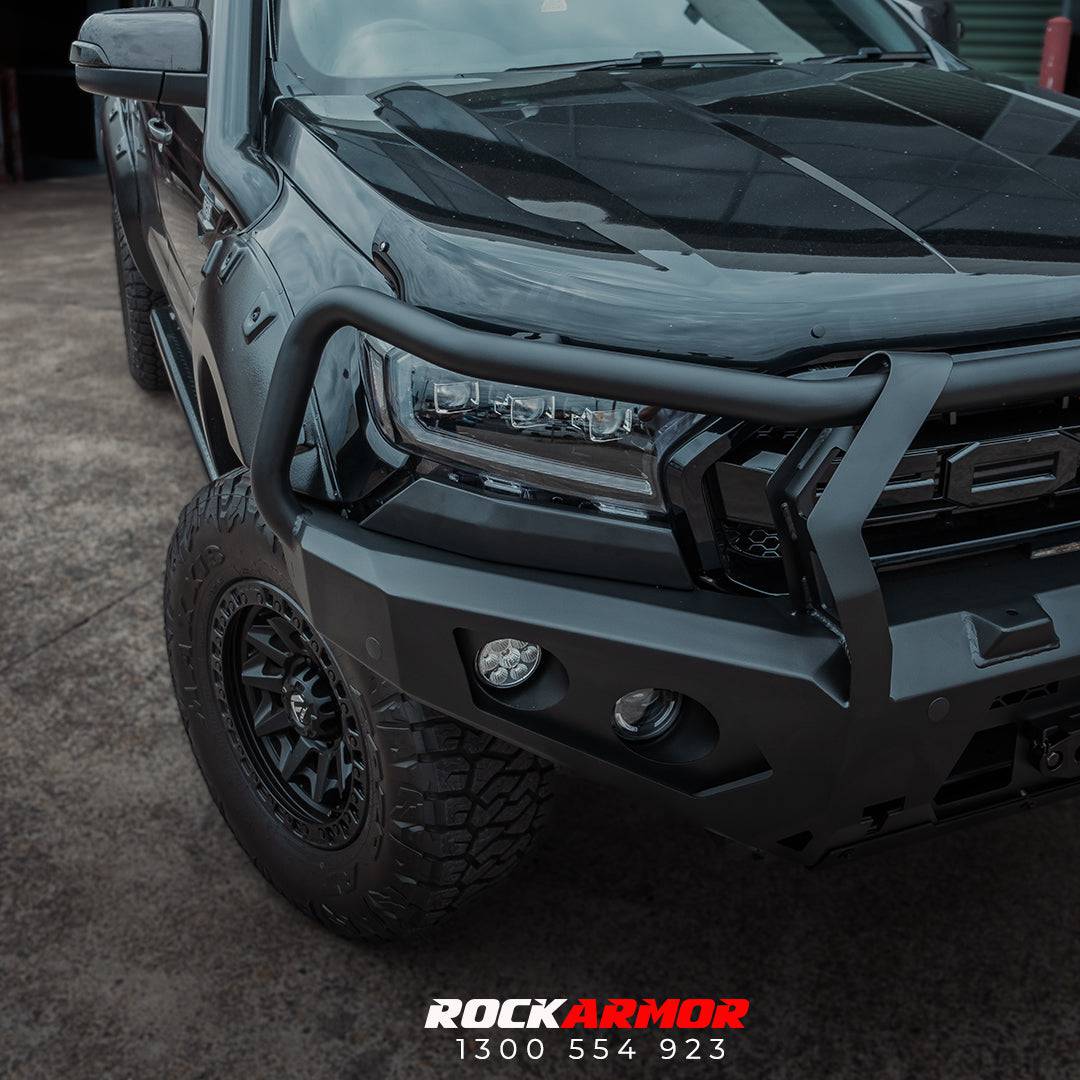

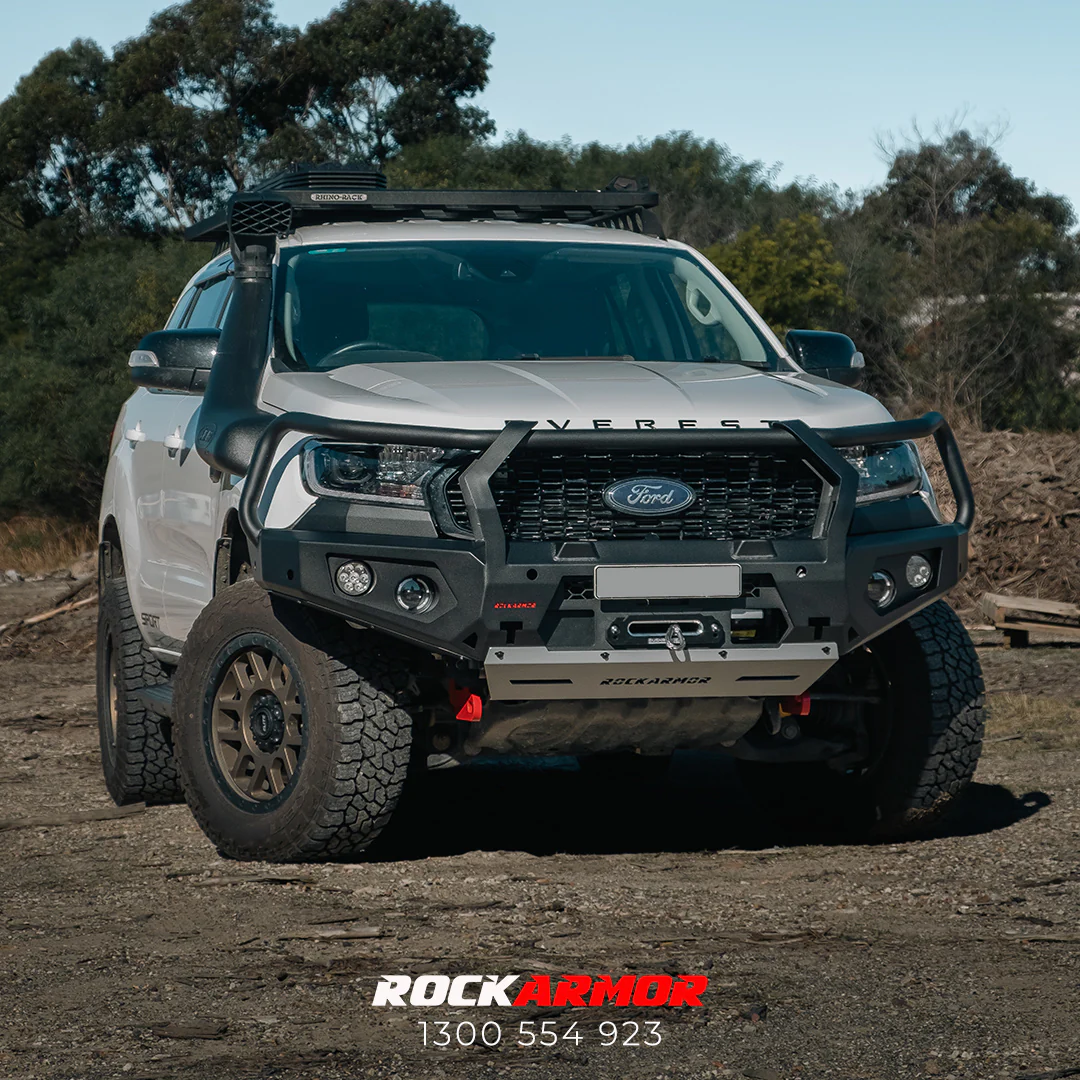

ROCKARMOR PX2 / PX3 / WILDTRAK GT BULL BAR (06/2015 - 05/2022)

Full Bumper Replacement / Winch Compatible / ADR Complied / Built in Rated Recovery Points

Upgrading your vehicle's suspension to withstand the additional weight of 60-100kgs from the bull bar and optional winch is indeed important for several reasons:

1. Weight capacity: Factory suspensions are designed to handle specific weights, and adding the extra weight of a bull bar and winch can exceed the suspension's limits, leading to premature wear and potential failure.

2. Sagging and bumpy ride: Without proper suspension upgrades, the front suspension may sag under the added weight, causing the vehicle to ride unevenly and uncomfortably. This can lead to a less stable driving experience and may affect handling and control.

3. Risk of damage: A sagging suspension can put additional stress on various vehicle components, such as tires, springs, and shock absorbers. Over time, this can lead to further damage and increased maintenance costs.

To ensure the proper fitment of the bull bar and minimise potential issues, it's essential to leave a minimum 10-15mm gap between the bull bar and the body of the vehicle. This gap allows for independent movement between the chassis and body, reducing the risk of stress and damage to the vehicle's structure.

It's always best to consult with a qualified mechanic or automotive specialist who can assess your vehicle's suspension system, recommend suitable upgrades, and install the bull bar properly while maintaining the necessary clearance. This way, you can ensure the safety and performance of your vehicle when carrying additional loads.



Bull Bar Warranty:

The bull bar is provided with a 12months Manufacturers Warranty from Rockarmor 4x4
