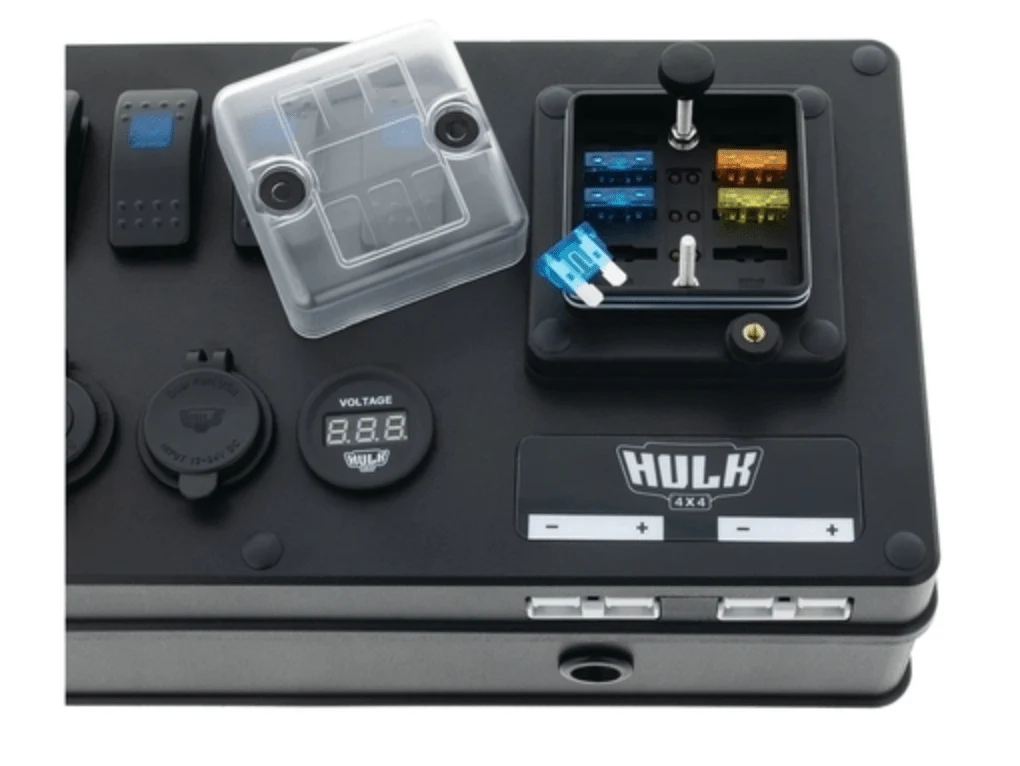

Hulk 4x4 6 Way 12/24V Control Box



The HULK 4x4 6 Way DC control box makes it very easy to wire up accessories in your vehicle, caravan or camper trailer.

Everything needed is housed in a very convenient plastic box and lets you control all your accessories safely from one spot.



Includes:

• 6 x Rocker Switches (20amp) with Blue LED
• Switch Sticker Kits To Identify Each Switch
• Quick Charge QC3 Dual USB
• 2 x Anderson Style 50amp Plugs (Input & Output)
• DC Voltmeter with Blue LED
• 3 x Accessory Power Sockets
• 6 Way Weatherproof Fuse Block with Fuses
• LED Indicators In The Fuse Block To Alert You If a Fuse Is Blown
• Housing Constructed From Lightweight Nylon

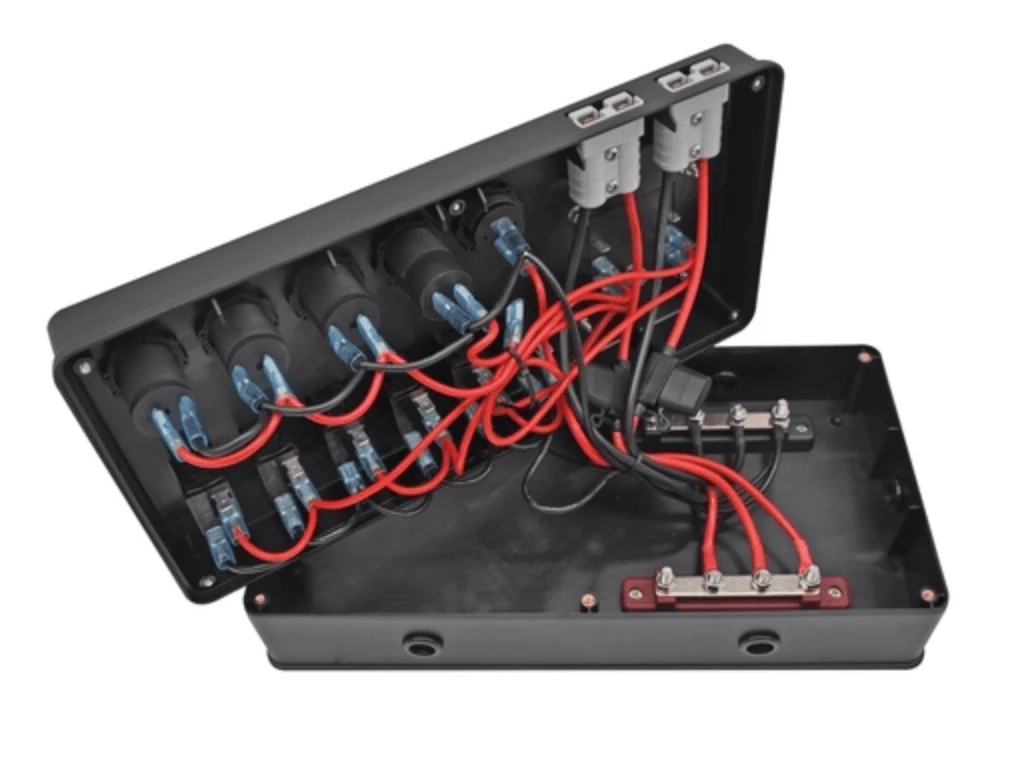

• Fully Wired Internally, Just Need To Run Power & Earth To Unit
• 4 way Positive & Negative Bus Bars
• Mounting Hardware

Specifications:

• Dimensions: 355 x 180 x 138 (LxWxH) mm
• Product Material: Nylon
• Rocker Switch: 6 (12V 20A / 24V 10A DV)
• Power Socket: 3 (12V 20A / 24A 10A DC)
• Dual Port USB Socket: 1 (Range Port 1: 2.4amp @ 5V ; Port 2: QC3.0, 3.6-12V Max 18W)
• Voltmeter Socket: 1 (6V~~30V DC)
• Anderson Connector: 2 (50A)
• Fuse Box: 1 (100A 32V DC.max)
• Bus Bar: 2 (150A 32V DC.max)
• Fuse: 5A x 1, 15A x 3, 20A x 1, 30A x 2
• Wire: 1015 / 10AWG & 1015 / 14AWG
